Customization: Available
Type: Anaesthesia Machine
Kind: Gynaecology
Send Inquiry

Product Description

Basic Information

Model NO.
YJ-PA02
Certification
CE, ISO13485
LCD Display
5.4" LCD Screen
Group
Adult & Pediatric
Respiration Frequency
1-99 Bpm
I/E Ratio
4:1 ~ 1:10
Vaporizer Range
0.5%~5%
CO2 Absorber
1 Kg
Back-up Power
At least 4 Hours
Origin
China

Product Description

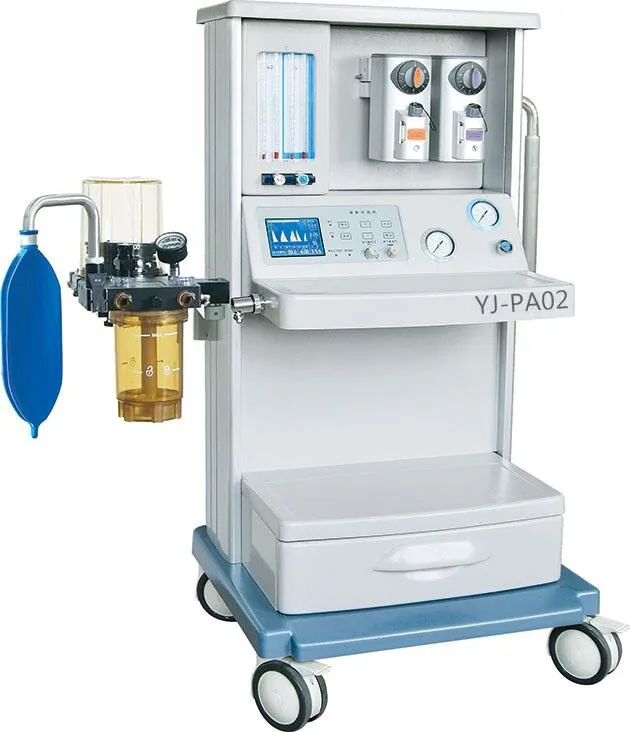

Multifunctional Anesthesia Machine

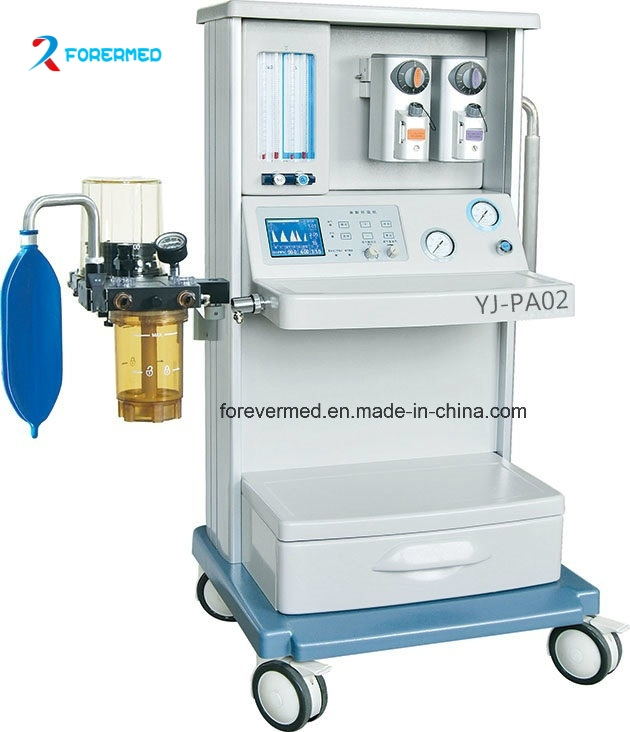

YJ-PA02 Multifunctional Anesthesia Machine with Dual Vaporizer

  • Pneumatically driven and electrically controlled system
  • Built-in ventilator with 5.4" LCD display screen
  • Multiple working modes: Closed, Semi-Closed, Semi-Open
  • Gas Requirement: Medical O2 and N2O (0.32~0.6 MPa)
  • 4-tube Flowmeters: O2 & N2O; 0.1L/Min ~ 10L/Min
  • Oxygen Flush: 25~75 L/Min
  • Respiration Modes: A/C, IPPV, SIPPV, IMV, SIMV, MANUAL
  • Tidal Volume: 0~1500ml

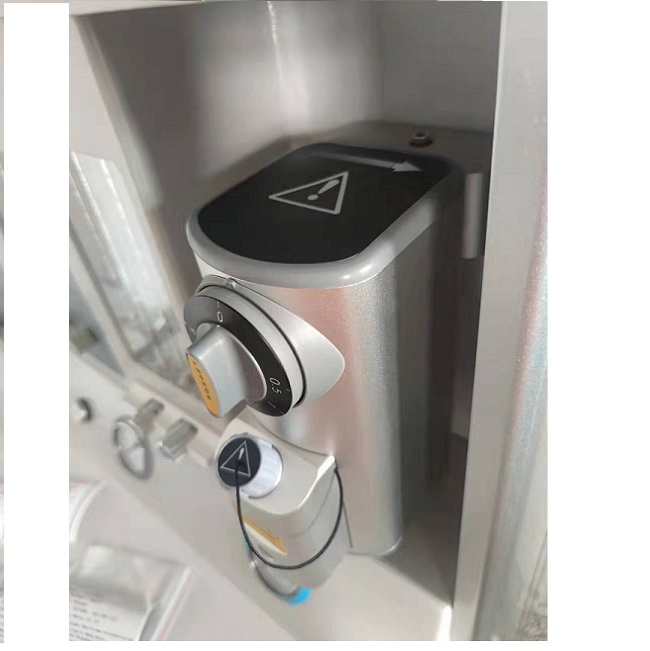

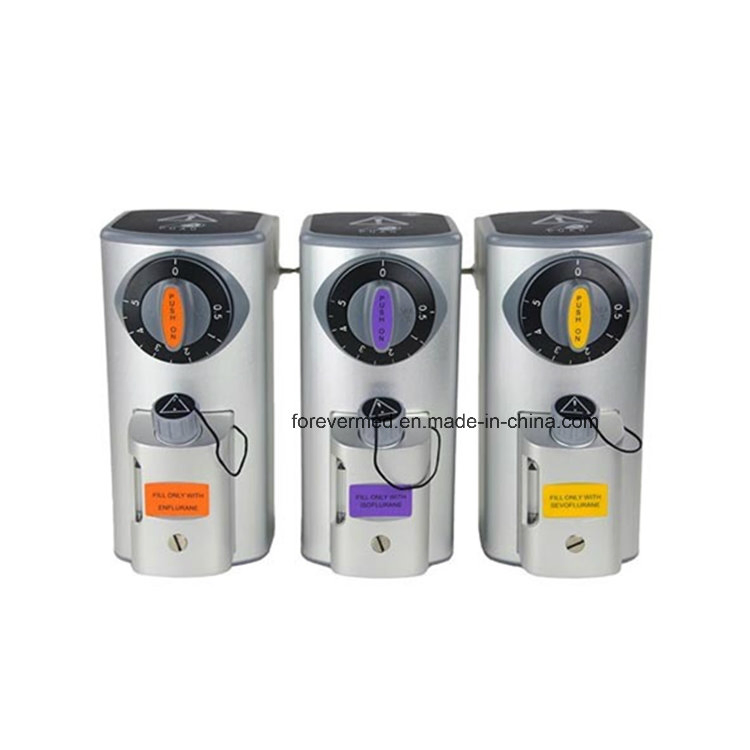

  • Vaporizer Options: Enflurane/Isoflurane/Sevoflurane/Halothane

Key Features

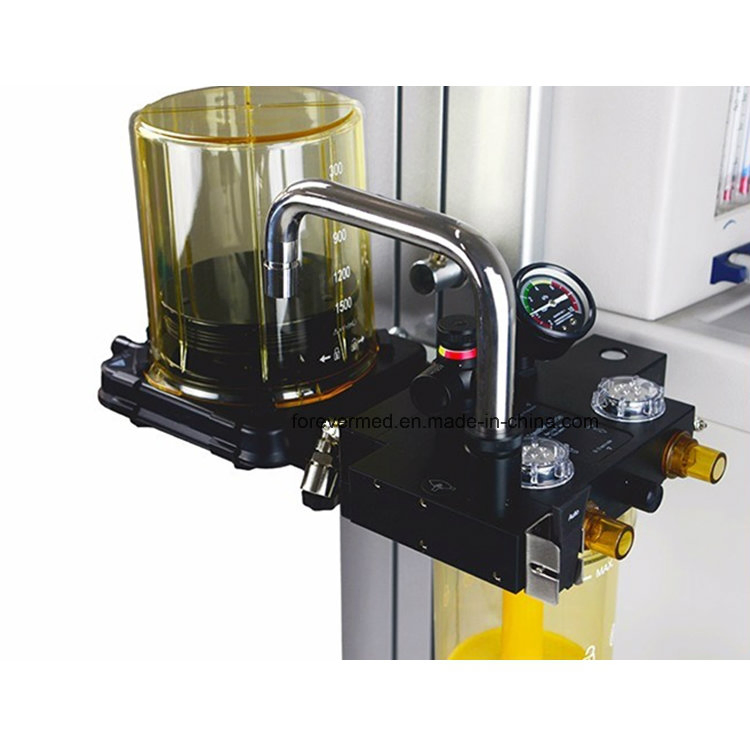

  • Standard integrated metallic modular respiratory circuit; ensures gas sealing under high-temperature disinfection.
  • Equipped with electronic pressure differential flow sensor and imported respiratory control valve.
  • High precision four-tube flowmeter with interlocking O2-N2O supply to guarantee O2 output ≥ 21%.
  • Automated self-checking function during startup and automatic self-calibrating sensor.
  • Advanced alarm system: Audible and visual alerts for tidal volume, airway pressure, asphyxia, and power failure.
  • Equipped with international rotating Na-lime tank using imported PPSU material (resistant to 134°C).

Technical Specifications

Parameter Details
ModelYJ-PA02
Display5.4" LCD display screen
Flowmeter RangeO2: 0.1-10L/min | N2O: 0.1-10L/min
Ventilation ModeA/C, IPPV, SIPPV, MANUAL
Tidal VolumeAdjustable: 50-1500ml | Display: 0-1500ml
Respiratory Rate1-99 bpm
I:E Ratio4:1 ~ 1:10
Inspiratory Pressure Trigger-10-10cmH2O (electronically controlled)
Vaporizer Concentration0-5%
Back-up BatteryAt least 4 hours

Visual Showcase

Equipment Showcase 1 Equipment Showcase 2
Factory View 1 Factory View 2 Factory View 3
Manufacturing Details 1 Manufacturing Details 2

Frequently Asked Questions

What are the primary ventilation modes of the YJ-PA02?
The machine supports several modes including A/C, IPPV, SIPPV, IMV, SIMV, and MANUAL mode to accommodate different patient needs.
Does the anesthesia machine include a backup power supply?
Yes, it features an internal backup power supply that can support the machine for at least 4 hours in the event of an AC power failure.
Is the respiratory circuit easy to disinfect?
Absolutely. It uses a standard integrated metallic modular respiratory circuit that is specifically designed to handle high-temperature disinfection (up to 134°C) without gas leakage issues.
What types of anesthetic gases can be used with the vaporizers?
The machine is compatible with Enflurane, Isoflurane, Sevoflurane, and Halothane, with a concentration setting range of 0.5% to 5%.
Can this machine be used for pediatric patients?
Yes, the YJ-PA02 is versatile and designed for use with both adult and pediatric patient groups.
What safety alarms are integrated into the system?
Safety features include audible and visual alarms for airway pressure limits, tidal volume output issues, apnea, AC power failure, and low battery levels.
