Customization: Available
Type: Anaesthesia Machine
Kind: Surgery
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
JINLING 01
Certification
CE, ISO13485
Group
Adult / Pediatric
Ventilation Mode
A/C, IPPV, SIPPV, Manual
Tidal Volume
50-1500ml
Respiratory Rate
4~40 Bpm
O2 Flush
25-75 L/Min
Vaporizer Conc.
0-5%
Absorber Volume
1.5L
HS Code
9018907010
🏥 Single Vaporizer Anesthesia Workstation

Hot product JINLING 01 designed for pediatric and adult clinical anesthesia.

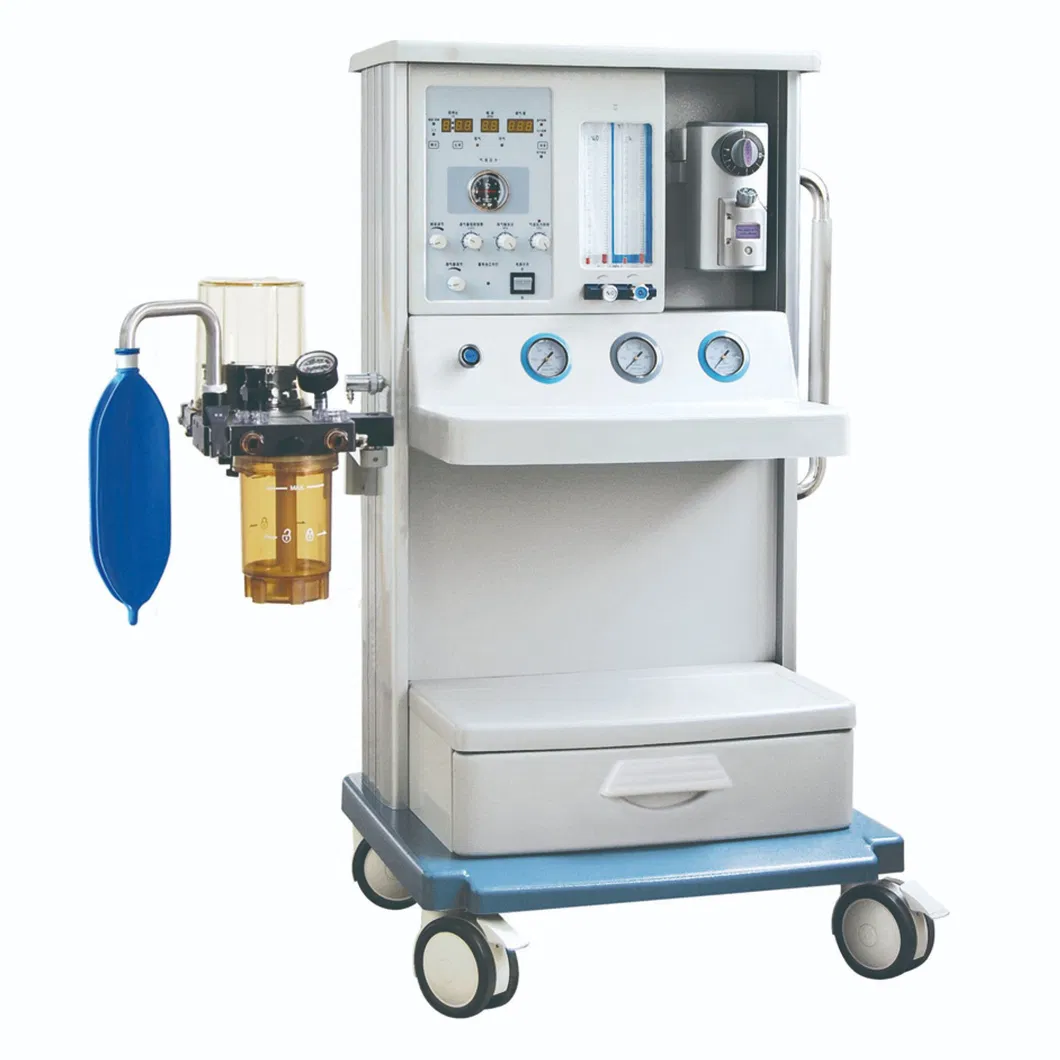

JINLING 01 Anesthesia Workstation
⚙️ Common Features
🔹
Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open systems.
🔹
Advanced Monitoring: Built-in high visibility, wide angle LED alphanumeric data display for clear parameter tracking.
🔹
Respiratory Circuit: Standard integrated metallic modular circuit; handles high-temperature disinfection and prevents gas leaks.
🔹
Safety Guarantees: Two tube flowmeter with interlocking O2-N2O supply, ensuring oxygen output never drops below 21%.
🔹
Power Security: Automatically converts to backup power mode during AC power outages (at least 4 hours).
🔹
Precision Vaporizer: Local assembly with imported components (Enflurane, Isoflurane, Sevoflurane) with self-compensating functionality.
📊 Technical Specifications
Model Parameter JINLING-01 (Standard) JINLING-01 (Advanced)
DisplayLED
O2 Flowmeter0.1-10L/min
N2O Flowmeter0.1-10L/min
Ventilation ModeIPPV, SIPPV, MANUAL
Tidal Volume50-1500ml (Adjustable)
Respiratory Rate4-40bpm
I:E Ratio1:1.5 - 1:3.0
Pressure Trigger-10-10cmH2O
Vaporizer SlotsSingle PA-80 typeDouble PA-80 type

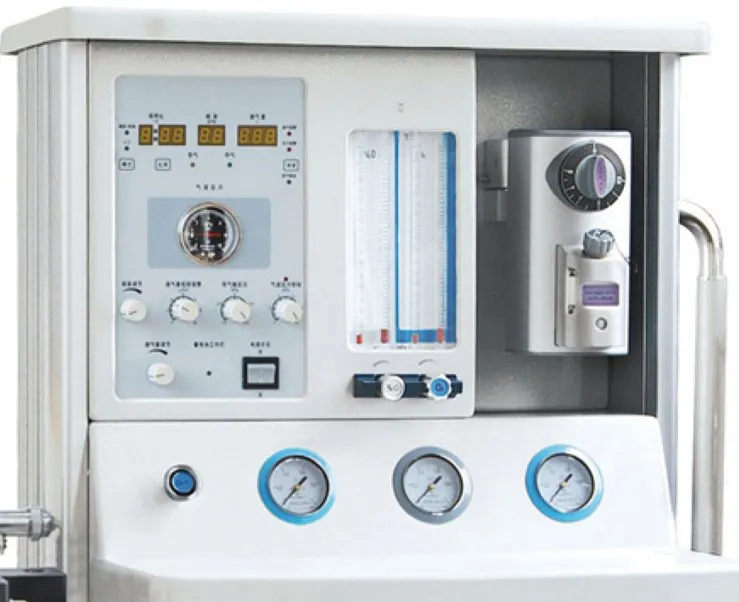

Interface and Flowmeter
Side view of Workstation

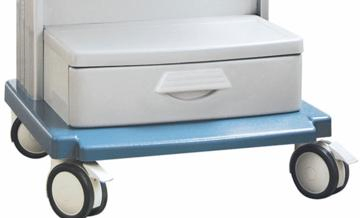

Structural details
❓ Frequently Asked Questions
Q1: What patient groups can use the JINLING 01 workstation?
The JINLING 01 is versatile and designed for both pediatric and adult patients.
Q2: How long does the backup battery last?
The built-in backup power supply supports the device for at least 4 hours during AC power failure.
Q3: What are the available ventilation modes?
It supports IPPV (Intermittent Positive Pressure Ventilation), SIPPV (Synchronized IPPV), and Manual modes.
Q4: What is the adjustable range for Tidal Volume?
The tidal volume can be adjusted from 50ml up to 1500ml to suit different patient needs.
Q5: Can the respiratory circuit be disinfected?
Yes, it features a standard integrated metallic modular circuit that is temperature resistant and easy to clean/disinfect.
Q6: Does it guarantee oxygen concentration safety?
Yes, the flowmeter is fitted with an interlocking oxygen-nitrous oxide supply system to ensure oxygen output is never lower than 21%.
