Customization: Available
Type: Anaesthesia Machine
Kind: Surgery
Send Inquiry

Product Description

Basic Information

Model NO.
JINLING 850
Certification
ISO13485, ISO9001, CE Approved
Group
Adult
LCD Display
10.4 Inch TFT Display
Ventilation Mode
IPPV, SIPPV, VCV, PCV, IMV, SIMV, Manual, Standby
Tidal Volume
20-1500ml
(I:E) Ratio
8:1-1:10
Respiratory Rate
1-100bpm
Pressure Control Range
5-70hpa
PEEP
0-20CMH2o
Trademark
JINLING
HS Code
9018907010

Product Description

ICU Medical Anaesthesia Instruments Anesthesia Machine Workstation

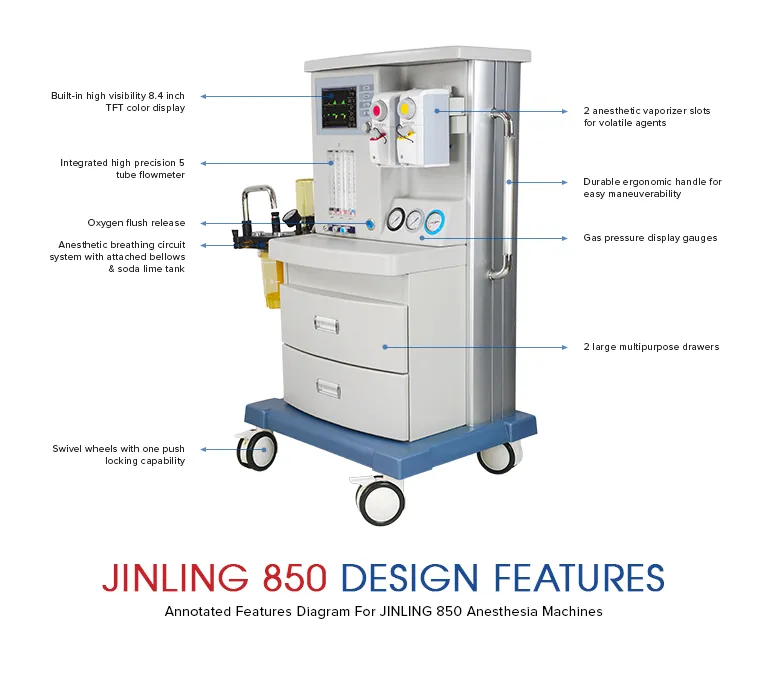

Anesthesia Machine Workstation Main View

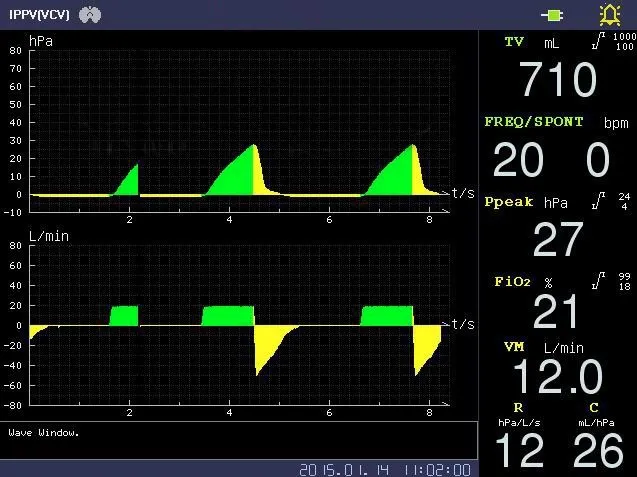

Anesthesia Machine Workstation Detail

Common Features

Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open.
Anesthesia Ventilator: Built-in color TFT display, able to display Pressure-Time, Frequency-Time, Pressure-Volume and Frequency-Volume waveforms.
Respiratory Circuit: Standard integrated metallic modular circuit; solves gas sealing under high temperature disinfection, easy to clean.
Power Failure Support: Automatically converts to backup power mode during AC power outages.
Flow Sensor: Equipped with electronic pressure differential flow sensor and imported respiratory control valve.

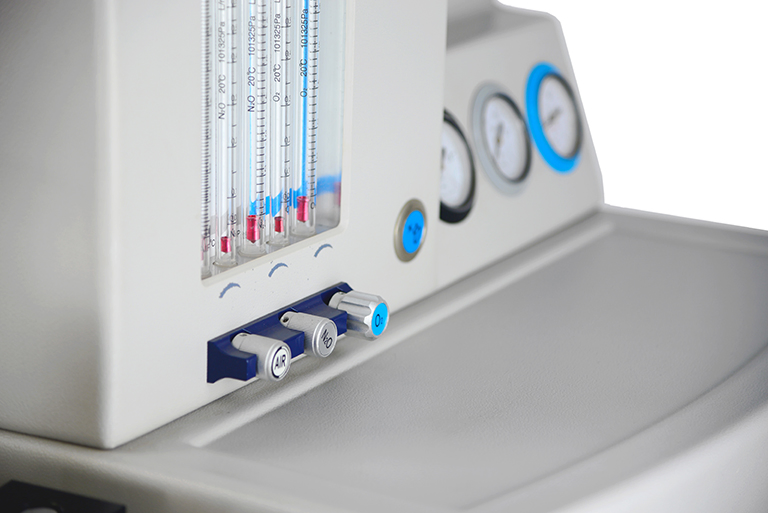

Flowmeter: High precision five tube flowmeter with interlocking oxygen-nitrous oxide supply (Oxygen > 21%).
Design: Nonhazardous environmentally friendly frame with automated self-checking and self-calibrating functions.
Alarms: Audible and visual alarms for tidal volume, airway pressure, oxygen concentration, asphyxia, and power failure.

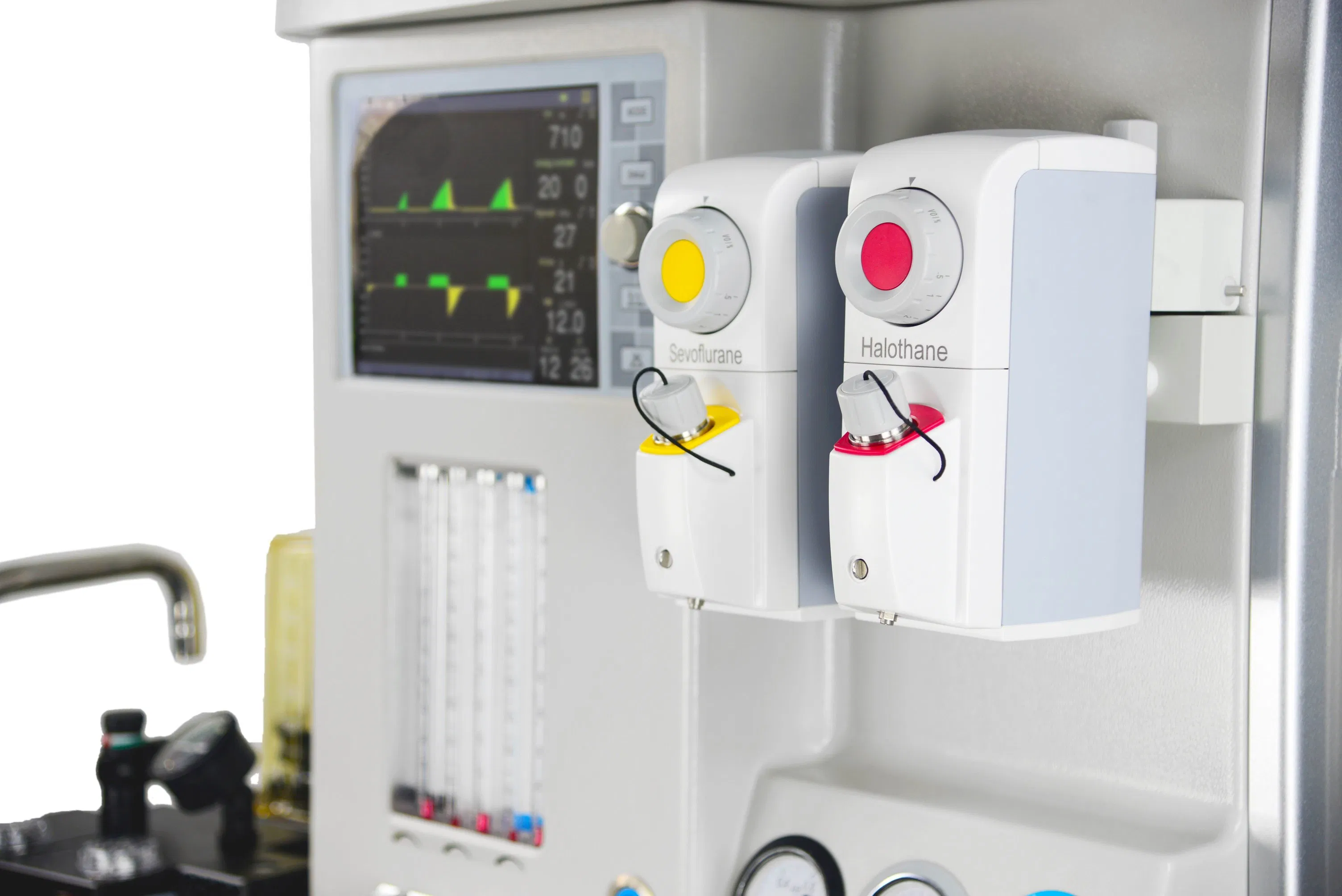

Vaporizer: Local assembly of imported components; supports Enflurane, Isoflurane, and Sevoflurane (Halothane optional).
APL Valve: Advanced Adjustable Pressure Limiting valve, suitable for low and ultra low flow anesthesia.
Na-lime Tank: International rotating tank, one-hand operation, temperature resistant to 134°C.
Optional: Multi-parameter Patient Monitor.

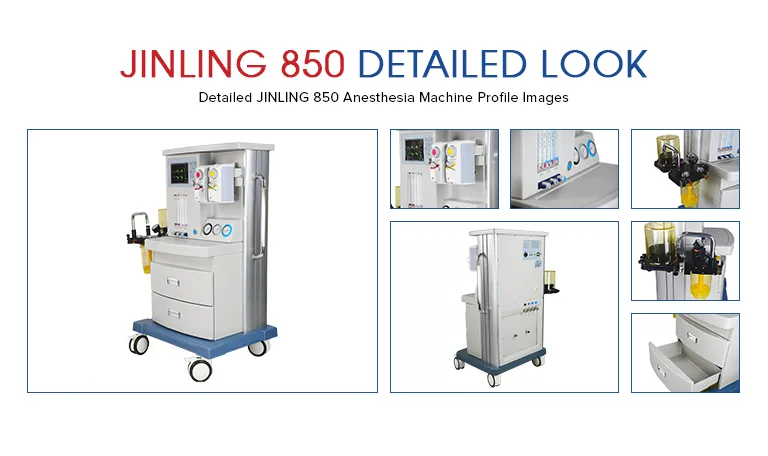

Workstation Component View 1

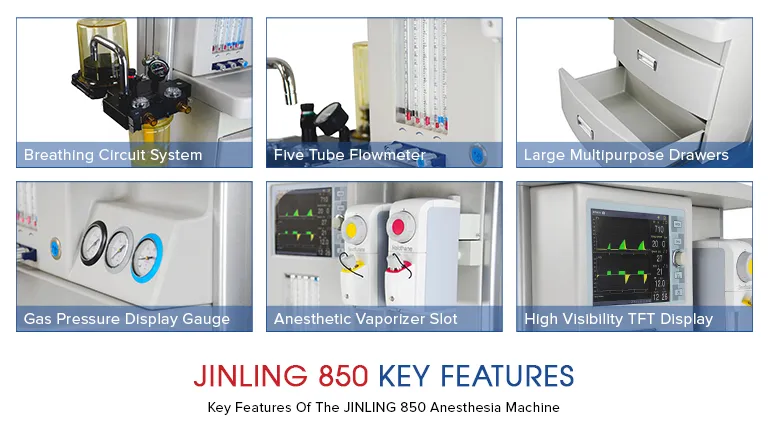

Workstation Component View 2

Technical Specifications

Parameter Specifications (JINLING 850 Advanced)
Display10.4 inch TFT display
Flowmeter RangeO2: 0.1-10L/min; N2O: 0.1-10L/min; Air: 0.1-10L/min
Ventilation ModeIPPV, SIPPV, VCV, PCV, IMV, SIMV, MANUAL, Standby
Back-up Power SupplyAt least 4 hours
Tidal VolumeAdjustable: 20-1500ml; Display: 0-2000ml
Respiratory Rate1-100bpm
I:E Ratio8:1-1:10 (Inverse ratio ventilation capable)
PEEP Range0-20cmH2O (Electronically controlled)
Pressure Trigger-10-10cmH2O (Electronically controlled)
SIGH1 sigh breath in every 80-120 breaths
Oxygen Monitor21-100% Inhaled Oxygen Concentration
SIMV Rate1-20bpm
VaporizerRange: 0-5%; Double PA-I type slots
Anesthesia Machine Structure
Anesthesia Machine Interface

Frequently Asked Questions

What is the display size and type for the JINLING 850?
The JINLING 850 features a high-resolution 10.4 inch TFT color display that can show multiple waveforms including Pressure-Time and Frequency-Volume simultaneously.
How long does the backup battery last during a power failure?
The machine is equipped with an automatic backup power mode that provides at least 4 hours of continuous operation in the event of an AC power outage.
What ventilation modes are available on this workstation?
It supports a wide range of modes including IPPV, SIPPV, VCV, PCV, IMV, SIMV, Manual, and Standby mode, making it suitable for various clinical scenarios.
Can the respiratory circuit be sterilized?
Yes, the machine uses a standard integrated metallic modular respiratory circuit designed for high-temperature disinfection (up to 134°C) to ensure gas sealing and hygiene.
What types of anesthetics can the vaporizer handle?
The system supports Enflurane, Isoflurane, and Sevoflurane as standard, with Halothane available as an optional component. It also features self-compensating functionality for precision.
Does it have a safety mechanism for oxygen delivery?
Yes, it is equipped with a high-precision five tube flowmeter with an interlocking oxygen-nitrous oxide supply, guaranteeing that oxygen concentration never falls below 21%.
