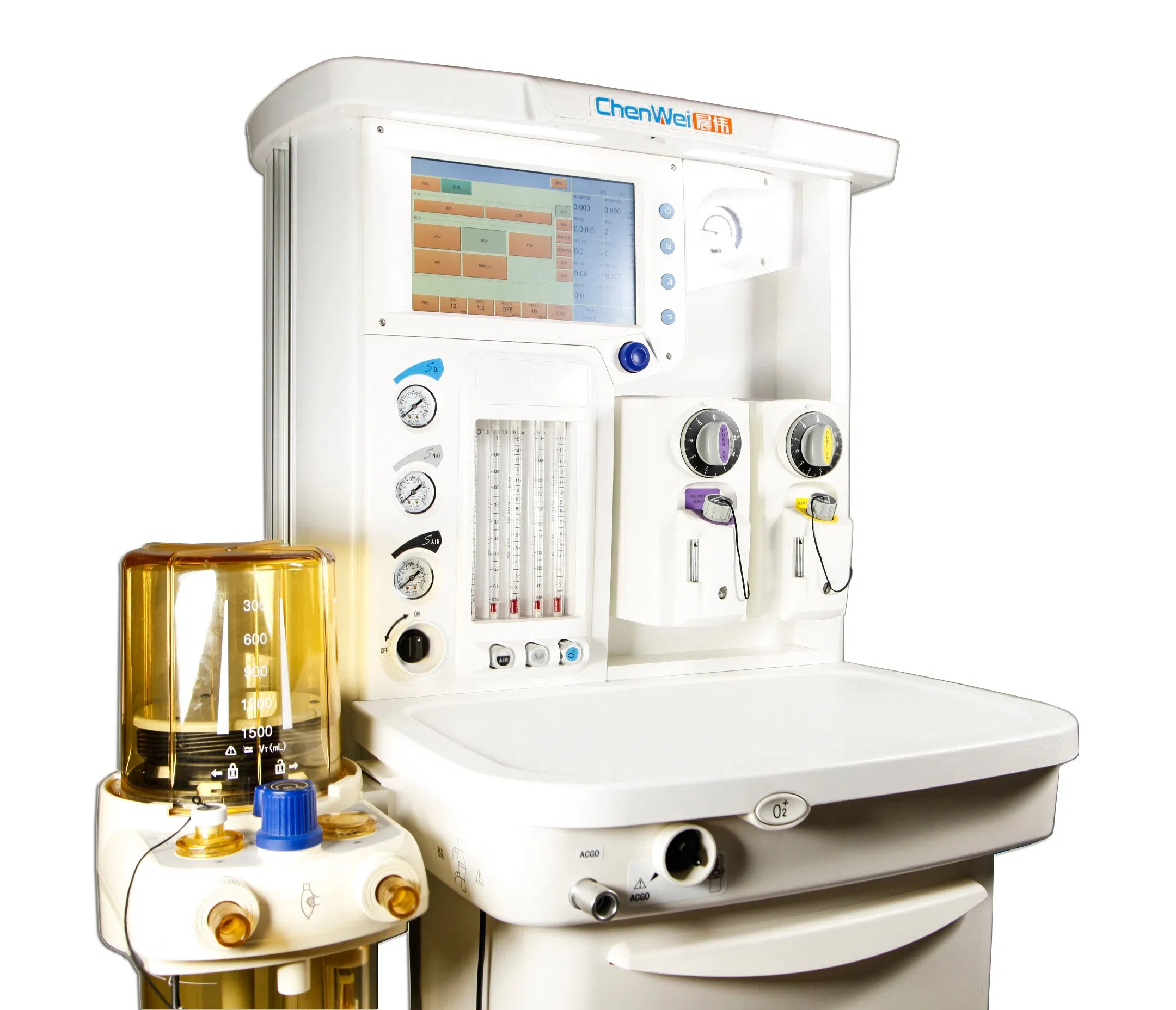

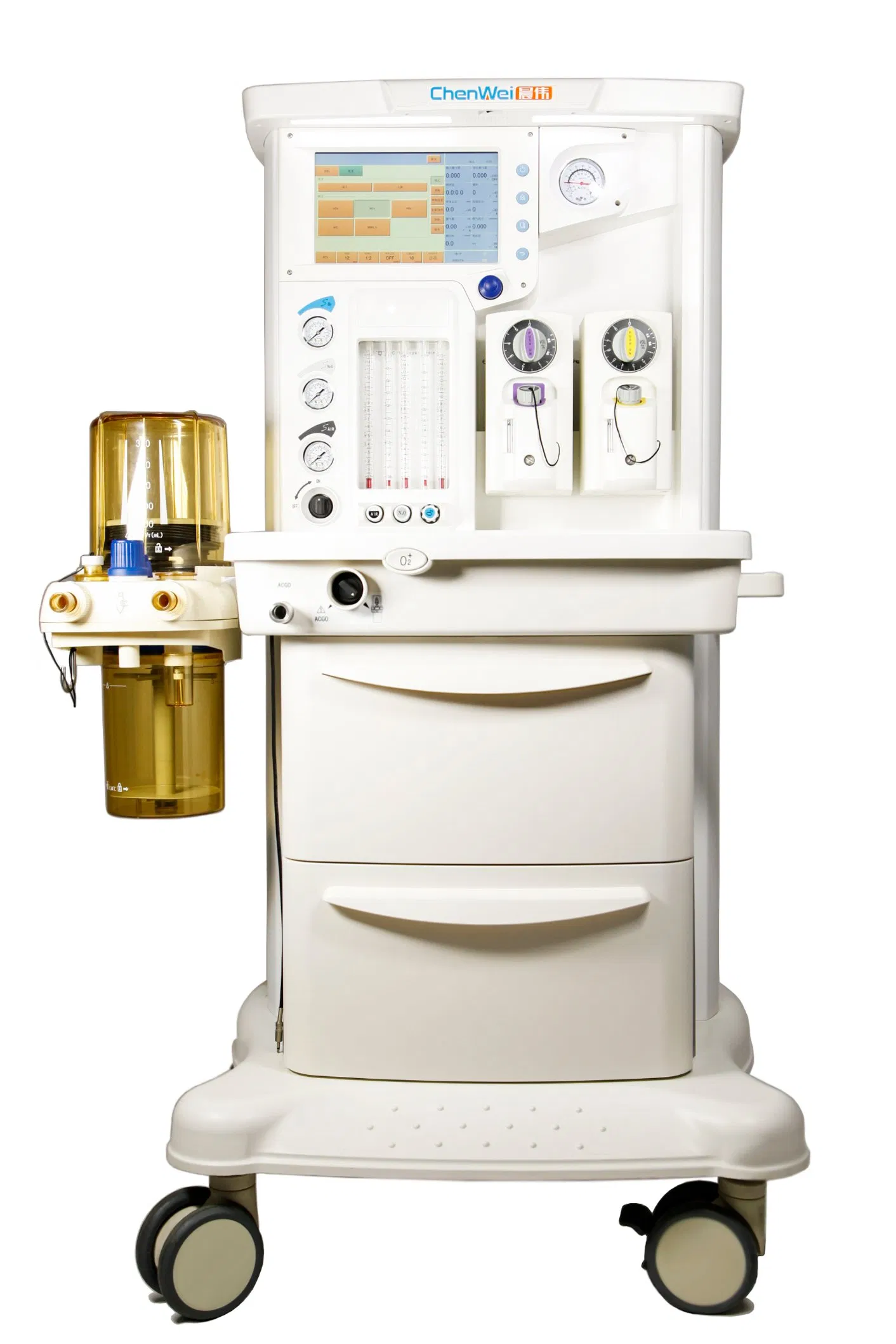

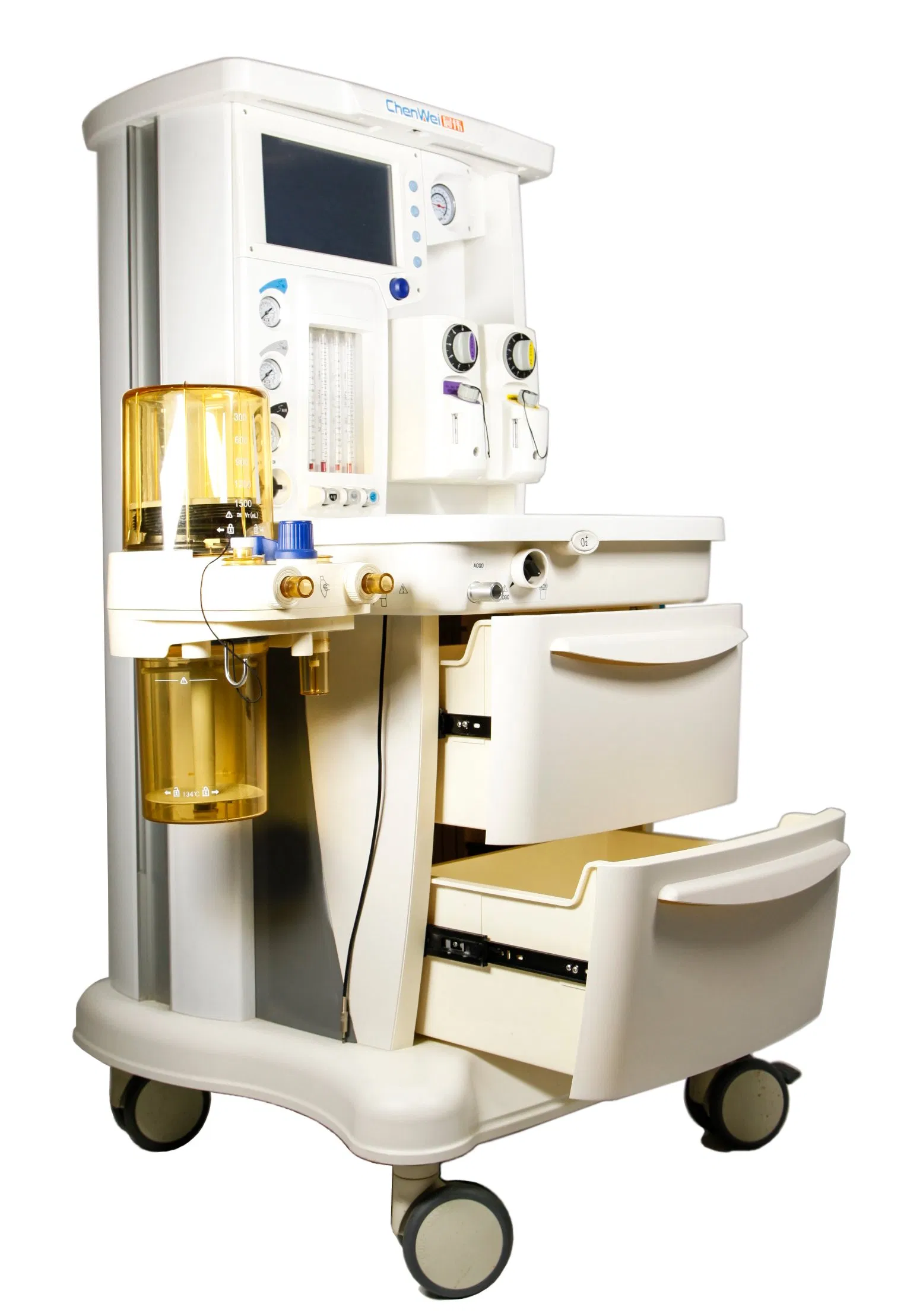

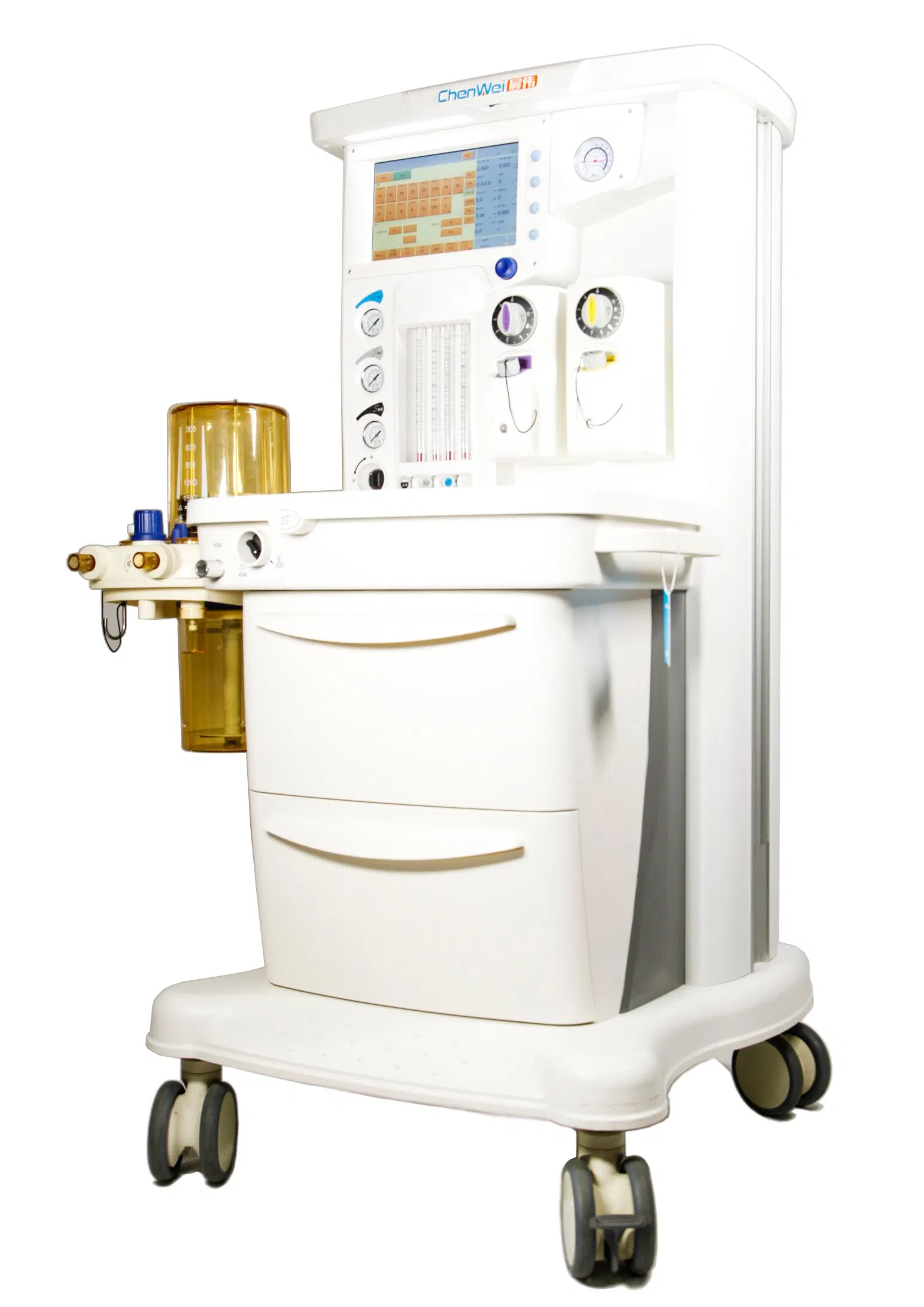

Chenwei Anesthesia System of ICU & Emergency Hospital Ventilator Anesthesia Workstation
Chenwei Anesthesia System of ICU & Emergency Hospital Ventilator Anesthesia Workstation
Chenwei Anesthesia System of ICU & Emergency Hospital Ventilator Anesthesia Workstation
Chenwei Anesthesia System of ICU & Emergency Hospital Ventilator Anesthesia Workstation
Chenwei Anesthesia System of ICU & Emergency Hospital Ventilator Anesthesia Workstation
1 / 5
Chenwei Anesthesia System of ICU & Emergency Hospital Ventilator Anesthesia Workstation
Chenwei Anesthesia System of ICU & Emergency Hospital Ventilator Anesthesia Workstation
Chenwei Anesthesia System of ICU & Emergency Hospital Ventilator Anesthesia Workstation
Chenwei Anesthesia System of ICU & Emergency Hospital Ventilator Anesthesia Workstation
Chenwei Anesthesia System of ICU & Emergency Hospital Ventilator Anesthesia Workstation

Chenwei Anesthesia System of ICU & Emergency Hospital Ventilator Anesthesia Workstation

Customization: Available
Type: Anaesthesia Machine
Kind: Anesthesia Machine
Send Inquiry

Product Description

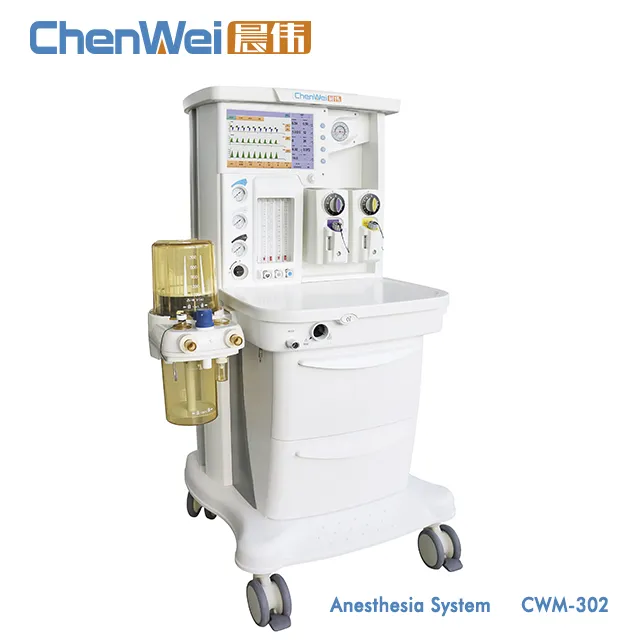

Anesthesia Workstation

Basic Specifications

Model NO.
CWM-302
Certification
CE, ISO13485
Group
Adult and Pediatric
LCD Display
With LCD Display
Transport Package
Standard Export Packing
Trademark
CW
HS Code
90189070
Production Capacity
5000PCS/Year

Product Description

  • ● Applied for closed, semi-open inhalation anesthesia, controlled or assisted ventilation.
  • ● Suitable for both adult and pediatric patient monitoring and parameters display.
  • ● Integrated APL valve available for safety and control.
  • ● Excellent air tightness, designed for easy operation, cleaning, and disinfection.
  • ● Advanced compensation technology for temperature, flow, and pressure to ensure precise concentration control.
  • ● Optional vaporizers supported: Isoflurane, Enflurane, and Sevoflurane.
  • ● Gas-driven and electrical control system with a clear color LCD screen.
Technical Specifications

Power: 220V AC ± 10%, 50Hz ± 2%, with built-in backup battery

Gas Source: O², N²O, Air

Oxygen Flush: 25 to 75L/minute

Ventilation Modes: IPPV, SIGH, SIMV, Pressure, PEEP, Manual (Optional: Standby)

Monitoring: Tidal volume, Minute volume, Frequency, Airway pressure, O² Concentration, Lung compliance (optional)

Waveform: Pressure-time, Flow-time, P-V loop (Optional: V-T, F-V loop)

Detailed View

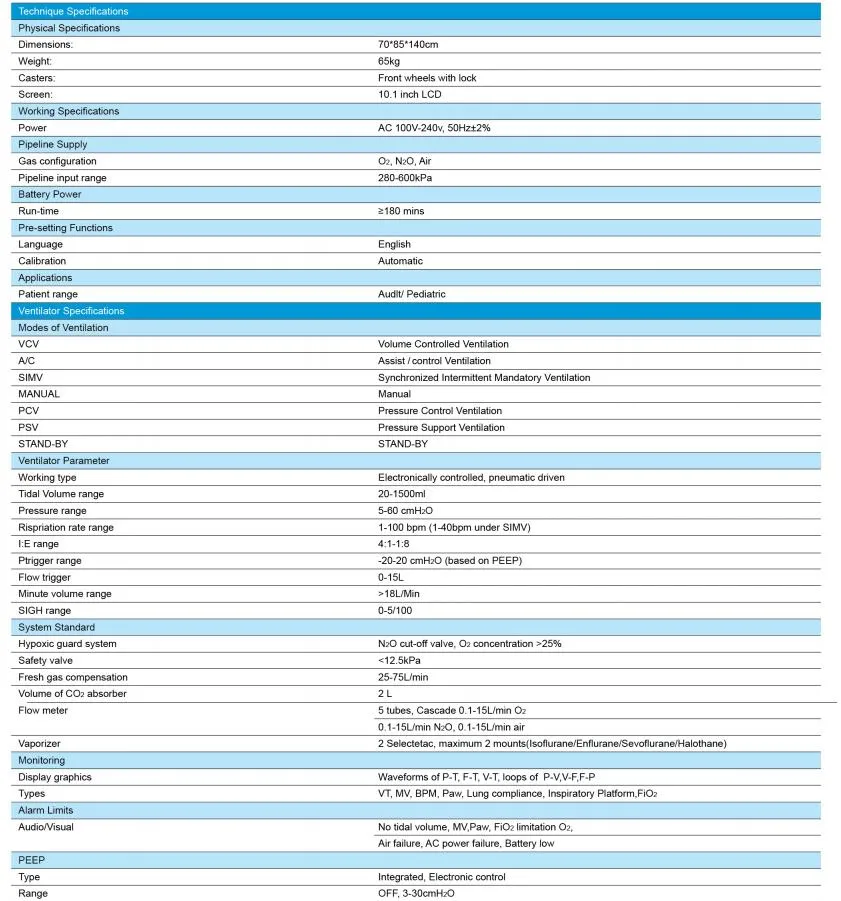

Anesthesia System Detail 1
Anesthesia System Detail 2
Anesthesia System Detail 3
Anesthesia System Detail 4

Frequently Asked Questions

Is the CWM-302 suitable for pediatric patients?
Yes, the system is specifically designed to support both adult and pediatric groups with adjustable ventilation parameters.
What happens if there is a power failure?
The machine includes a built-in backup battery to ensure continuous operation during AC power interruptions.
Which ventilation modes are supported by this model?
Standard modes include IPPV, SIGH, SIMV, Pressure, PEEP, and Manual mode. Standby mode is also available as an option.
What safety alarms are integrated into the system?
It features a comprehensive third-class alarm unit covering tidal volume, minute volume, airway pressure, apnea, O² concentration, and power/gas failures.
Can I use different types of anesthetic vaporizers?
Yes, optional imported vaporizers for Isoflurane, Enflurane, and Sevoflurane are provided based on your specific requirements.
How is the oxygen concentration monitored?
The system provides real-time monitoring of O² concentration with dedicated alarms for high and low concentration thresholds.
