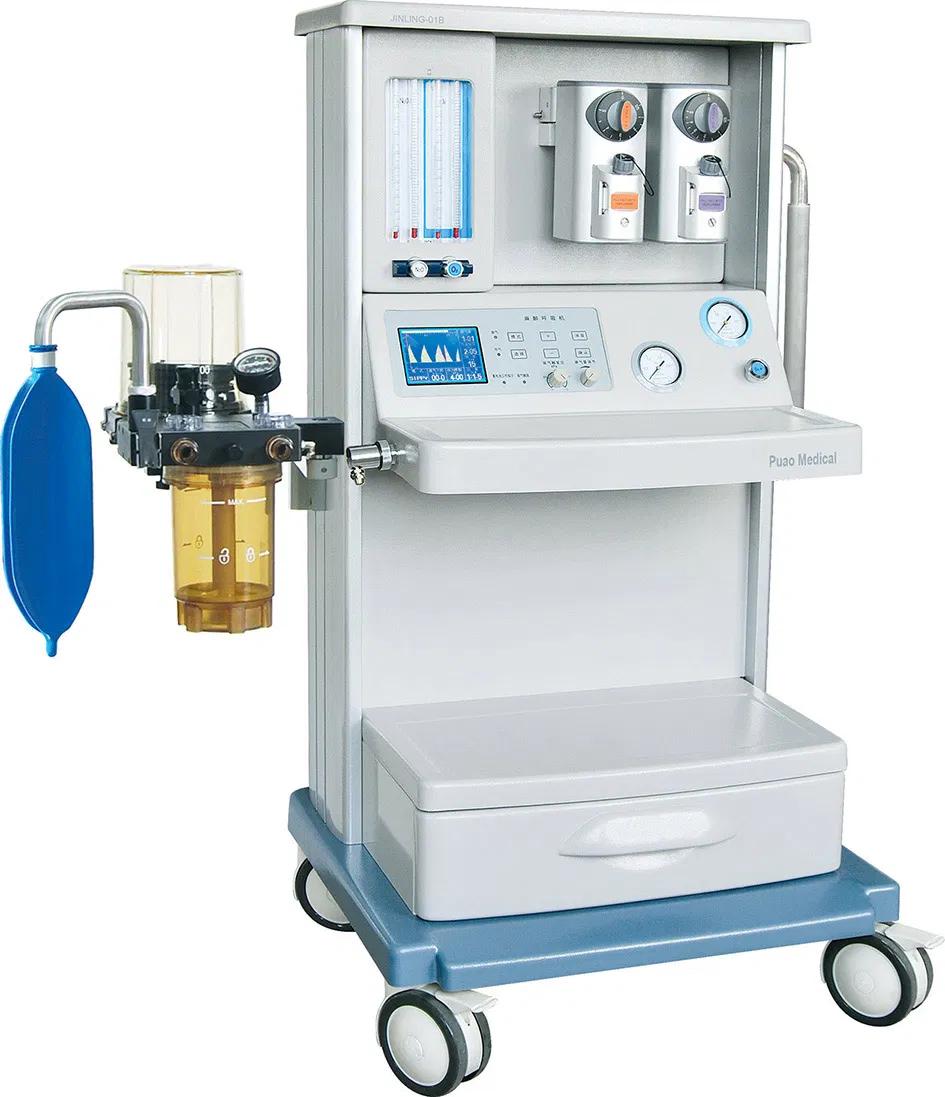

01Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open.

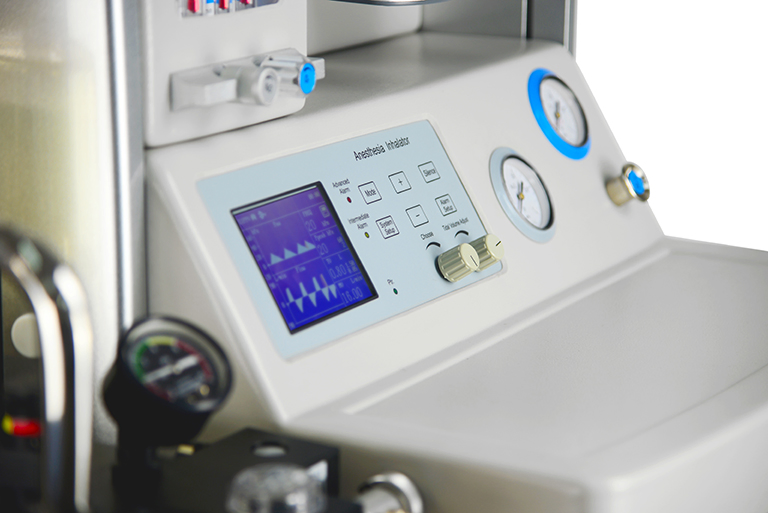

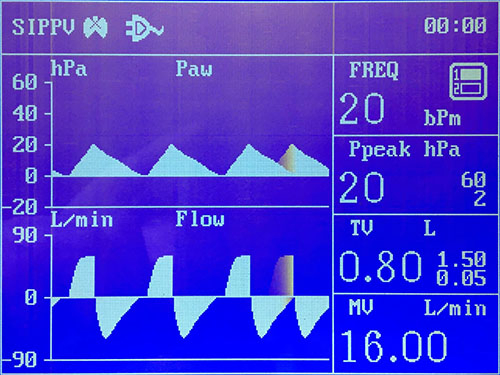

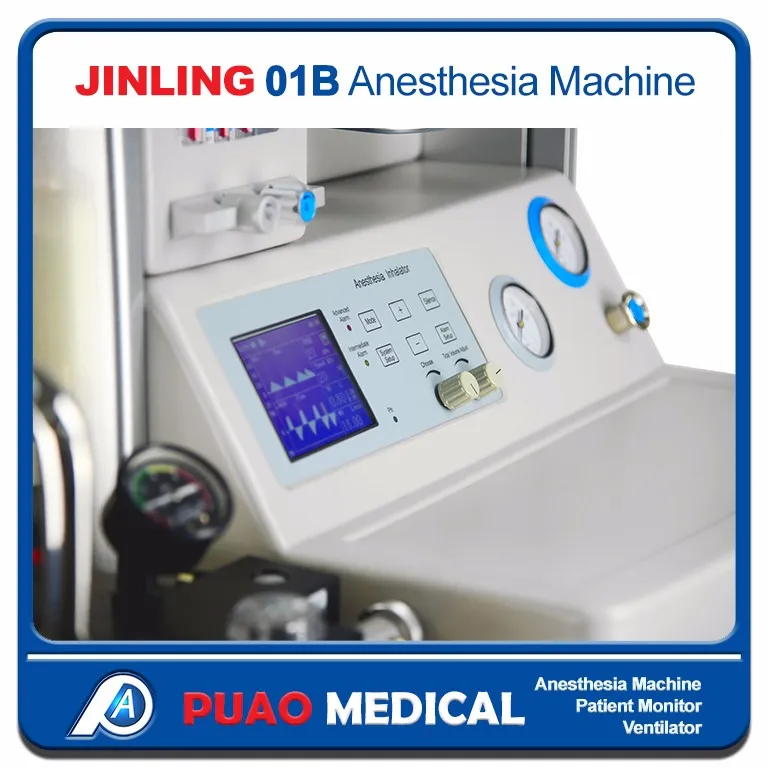

02Anesthesia Ventilator: Built-in 5.4 inch TFT display, showing Pressure-Time and Frequency-Time waveforms.
03Standard integrated metallic modular respiratory circuit; high-temperature disinfection compatible and easy to clean.
04Equipped with electronic pressure differential flow sensor and imported respiratory control valve.

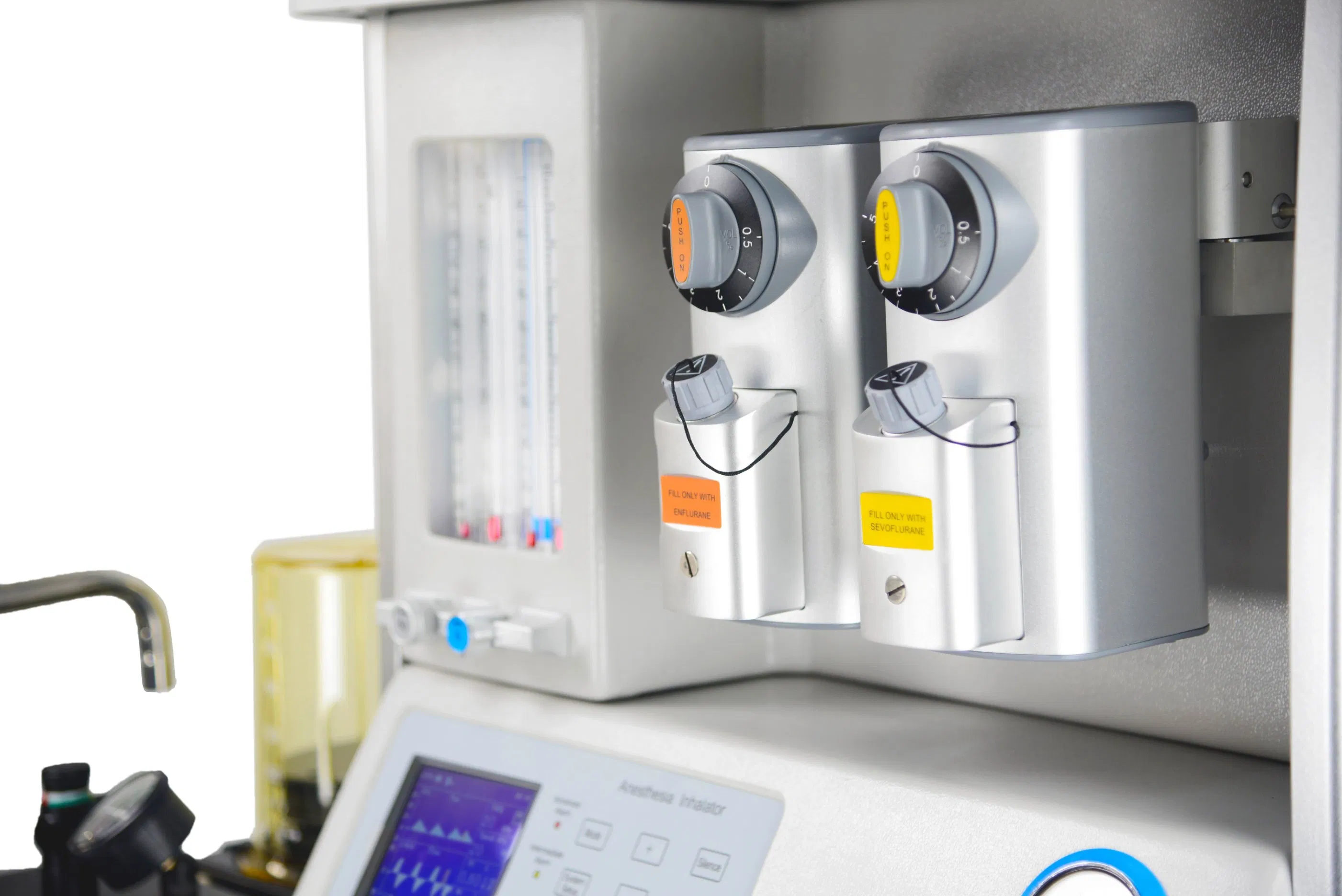

05Vaporizer: Supports Enflurane, Isoflurane, and Sevoflurane (Halothane optional) with self-compensating functionality.
06High precision four-tube flowmeter with interlocking O2-N2O supply, ensuring oxygen output ≥ 21%.
07Nonhazardous environmentally friendly frame with automated self-checking and self-calibrating sensor.
08Power Failure Support: Automatically converts to backup power mode during AC outages.
09Comprehensive Alarms: Audible/visual alerts for tidal volume, airway pressure, asphyxia, and power failure.
10Advanced international rotating Na-lime tank using imported PPSU material, resistant to 134°C.
Frequently Asked Questions (FAQ)
Q1: What is the tidal volume range for this anesthesia workstation?
A: The tidal volume is adjustable from 50ml to 1500ml, making it suitable for a wide range of adult clinical requirements.
Q2: How long does the backup battery last in case of power failure?
A: The built-in backup power supply ensures the machine can continue operating for at least 4 hours during AC power outages.
Q3: Which ventilation modes are supported by the 01B model?

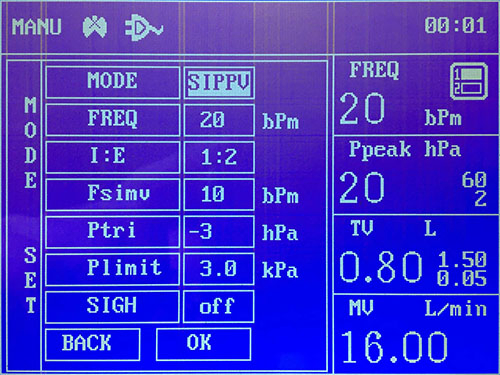

A: It supports multiple modes including IPPV, SIPPV, IMV, SIMV, and Manual ventilation to accommodate different surgical needs.
Q4: Is the respiratory circuit easy to disinfect?
A: Yes, it features a standard integrated metallic modular respiratory circuit designed for high-temperature disinfection and easy cleaning.
Q5: What types of vaporizers can be used with this machine?
A: The machine supports Enflurane, Isoflurane, and Sevoflurane vaporizers, with Halothane available as an optional choice.
Q6: Does the machine include safety alarms?
A: Yes, it is equipped with audible and visual alarms for airway pressure, tidal volume, asphyxia, power failure, and oxygen supply failure.
