Jinling-840 Advanced Anesthesia Workstation with LCD Display, Electrical-Driven and Electronically Controlled
Jinling-840 Advanced Anesthesia Workstation with LCD Display, Electrical-Driven and Electronically Controlled
Jinling-840 Advanced Anesthesia Workstation with LCD Display, Electrical-Driven and Electronically Controlled
Jinling-840 Advanced Anesthesia Workstation with LCD Display, Electrical-Driven and Electronically Controlled
1 / 4
Jinling-840 Advanced Anesthesia Workstation with LCD Display, Electrical-Driven and Electronically Controlled
Jinling-840 Advanced Anesthesia Workstation with LCD Display, Electrical-Driven and Electronically Controlled
Jinling-840 Advanced Anesthesia Workstation with LCD Display, Electrical-Driven and Electronically Controlled
Jinling-840 Advanced Anesthesia Workstation with LCD Display, Electrical-Driven and Electronically Controlled

Jinling-840 Advanced Anesthesia Workstation with LCD Display, Electrical-Driven and Electronically Controlled

Customization: Available
Type: Anaesthesia Machine
Certification: ISO13485
Send Inquiry

Product Description

📋 Basic Information
Model NO.
JINLING-840
LCD Display
With LCD Display
O2 Flush
35~75L/Min
Output Back Pressure
-10kpa~20kpa
Output Concentration
0.2%~5% (±0.2%) (Vol%)
Ventilation Frequency
6~40bpm
CO2 Absorber Capacity
1.6L
Vaporizer Temperature
15~35°c
Transport Package
Standard Export Package
Origin
China
HS Code
9018907010
Production Capacity
800PCS/Month
🔍 Product Description

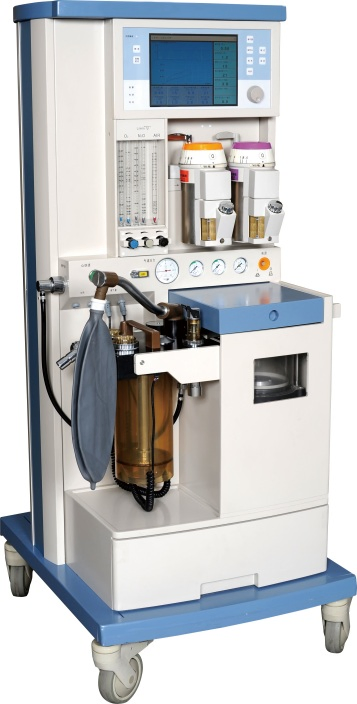

JINLING-840 Advanced Anesthesia Workstation

Electrical-driven and electronically controlled with high-definition LCD display for precise monitoring.

⚙️ Technical Specifications

  • Flow Rate: O2: 0.05~10L/min; N2O: 0.05~10L/min; Air: 0.2~12L/min (ORC O2≥25%)
  • O2 Flush: 35~75L/min
  • Safety Alarms: Automatic N2O cut-off and audible alarms when O2 levels drop below safety thresholds (≤0.04 MPa).
  • Breathing Circuit: Integrated system with APL adjustment range 0.5~7kPa.
  • CO2 Absorber: 1.6L Large capacity.
  • Tidal Volume: Adult: 100~1100ml; Infant: 30~150ml.
  • I:E Ratio: 1:1 ~ 1:9.9 (Adjustable).
📸 Product Show
Anesthesia Workstation Front View
Product Detail 1
Product Detail 2
Product Detail 3
Product Detail 4
Anesthesia System Full Setup
Interface Display
MOQ 1 pc
Warranty 1 year
Package One piece one carton / Standard Export Package
❓ Frequently Asked Questions
What is your Minimum Order Quantity?
Our Minimum Order Quantity (MOQ) is generally 1 unit. For specific consumable items like wires or tubing, the MOQ may vary.
Which payment methods do you accept?
We accept most forms of monetary payment including Bank Transfer (T/T), Direct Transfer, L/C, and Western Union.
Can I place a custom logo on the product?
Yes, logo application is possible for most products. Please confirm with our technical team regarding specific model requirements.
What after-sales services do you provide?
We offer comprehensive technical support, customer service, and troubleshooting for our equipment. You can reach out anytime for assistance.
How long is the warranty period?
Typically, we offer a 12-month warranty for all main products. Certain accessories may have different warranty durations.
What is the transport packaging for the workstation?
The equipment is packed in a standard export-grade carton to ensure safety during international shipping.
