Customization: Available
Type: Anaesthesia Machine
Kind: Surgery
Send Inquiry

Product Description

i
Basic Information
Model NO.
JINLING 850
Certification
ISO13485, ISO9001
Group
Adult and Children
LCD Display
10.4 Inch TFT Display
Ventilation Mode
IPPV, SIPPV, VCV, PCV, IMV, SIMV, Manual, Standby
Tidal Volume
20-1500ml
(I:E) Ratio
8:1-1:10
Respiratory Rate
1-100bpm
Pressure Control Range
5-70hpa
SIMV Rate
1-20bpm
PEEP
0-20CMH2o
Origin
China
HS Code
9018907010
CE Approved Medical Anesthesia Machine Workstation with Ventilator JINLING 850

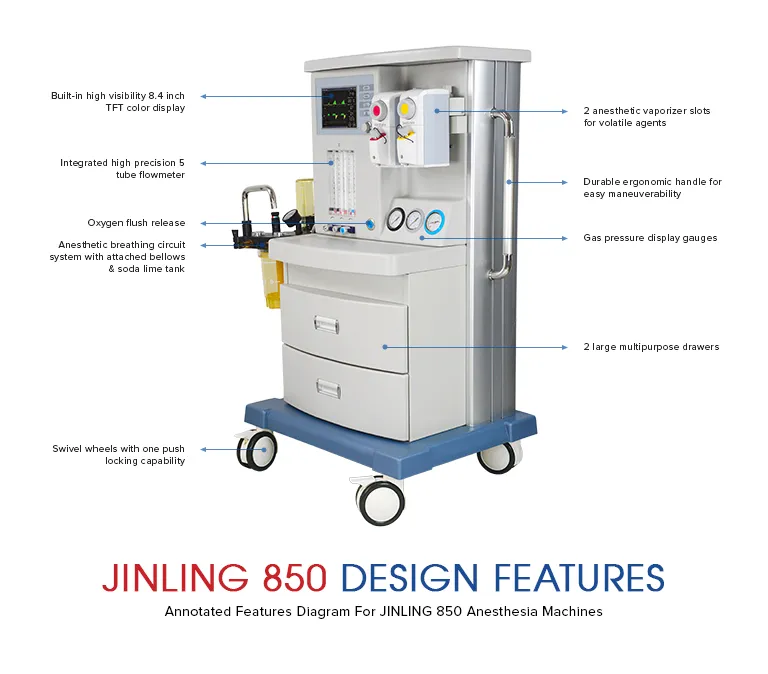

JINLING 850 Anesthesia Machine Anesthesia Machine Details
★
Common Features
✔Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open.

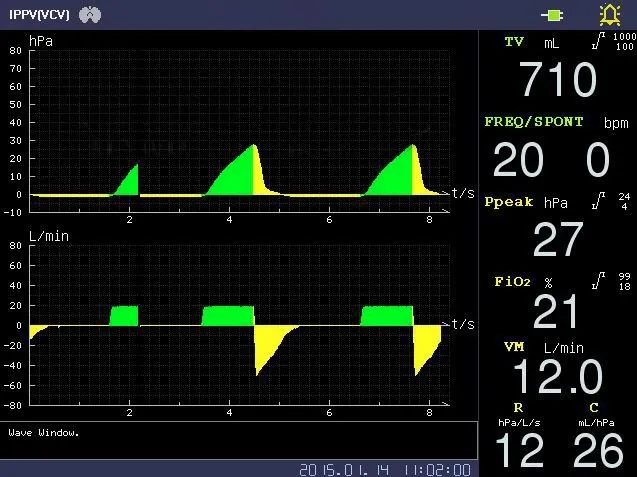

✔Anesthesia Ventilator: Built-in color TFT display, able-display Pressure-Time, Frequency-Time, Pressure-Volume and Frequency-Volume waveforms.
✔Integrated Metallic Circuit: Completely solves gas sealing under high temperature disinfection, easy to clean.
✔Power Failure Support: Automatically converts to backup power mode during AC power outages.

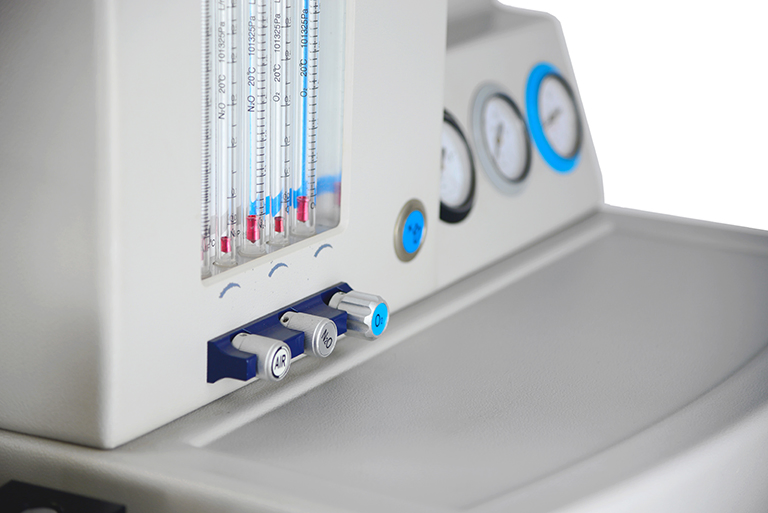

✔Precision Flowmeter: High precision five tube flowmeter with oxygen-nitrous oxide interlocking supply.
✔Safety Alarms: Audible/visual alarms for tidal volume, airway pressure, oxygen concentration, asphyxia, and more.
✔Vaporizer: Imported components for Enflurane, Isoflurane and Sevoflurane with self-compensating functionality.

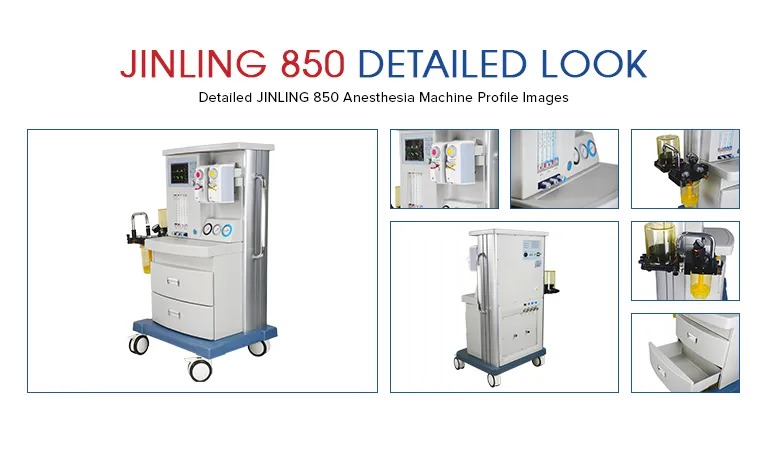

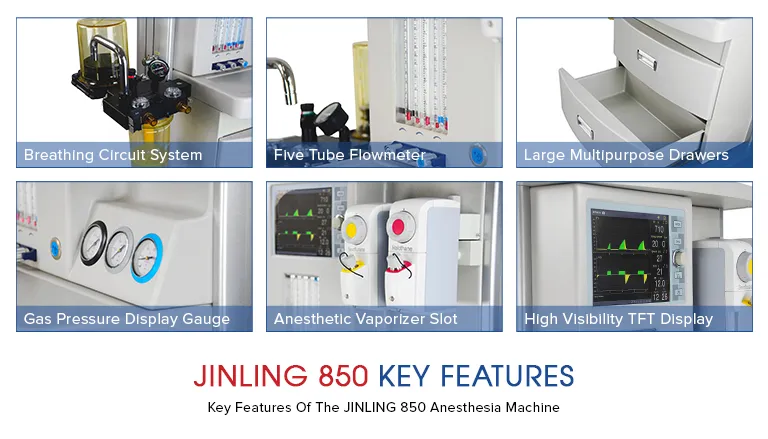

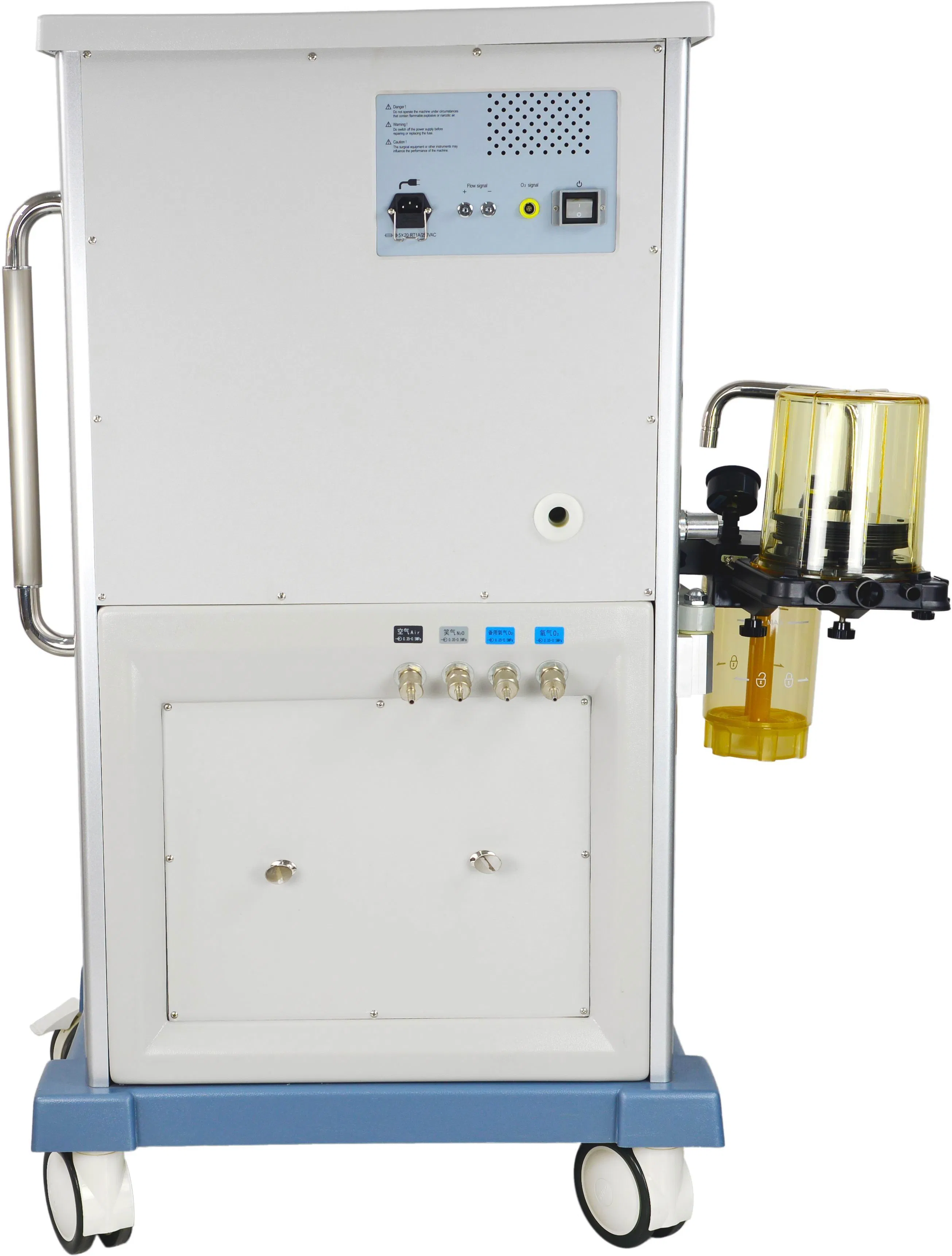

Workstation View 1 Workstation View 2
⚙
Specifications
ParameterDetails
ModelJINLING 850 (Advanced Model)
Display10.4 inch TFT display
Flowmeter RangeO2: 0.1-10L/min; N2O: 0.1-10L/min; Air: 0.1-10L/min
Ventilation ModeIPPV, SIPPV, VCV, PCV, IMV, SIMV, MANUAL, Standby
Back-up Power SupplyAt least 4 hours
Tidal VolumeAdjustable: 20-1500ml; Display: 0-2000ml
Respiratory Rate1-100bpm
I:E Ratio8:1-1:10 (Capable of inverse ratio ventilation)
PEEP Range0-20cmH2O (Electronically controlled)
SIGH1 sigh breath in every 80-120 breaths
Inhaled O2 Monitor21-100%
Vaporizer SlotsDouble PA-I type slots
Anesthesia Machine Component Anesthesia Machine Module
?
Frequently Asked Questions
What patient groups is the JINLING 850 suitable for?
The JINLING 850 is a versatile anesthesia workstation designed for use with both adult and pediatric (children) patients.
Does the workstation operate during a power failure?
Yes, it features a built-in backup power supply that can maintain operation for at least 4 hours during an AC power outage.
What types of monitoring are available on the display?
The 10.4-inch color TFT display can show Pressure-Time, Frequency-Time, Pressure-Volume, and Frequency-Volume waveforms instantly.
What ventilation modes are supported?
It supports multiple modes including IPPV, SIPPV, VCV, PCV, IMV, SIMV, Manual, and Standby modes.
What safety alarm features are included?
The system includes audible and visual alarms for tidal volume, airway pressure, oxygen concentration, asphyxia, power failure, and oxygen failure.
Is the respiratory circuit easy to disinfect?
Yes, it features a standard integrated metallic modular respiratory circuit designed for high-temperature disinfection and easy cleaning.
